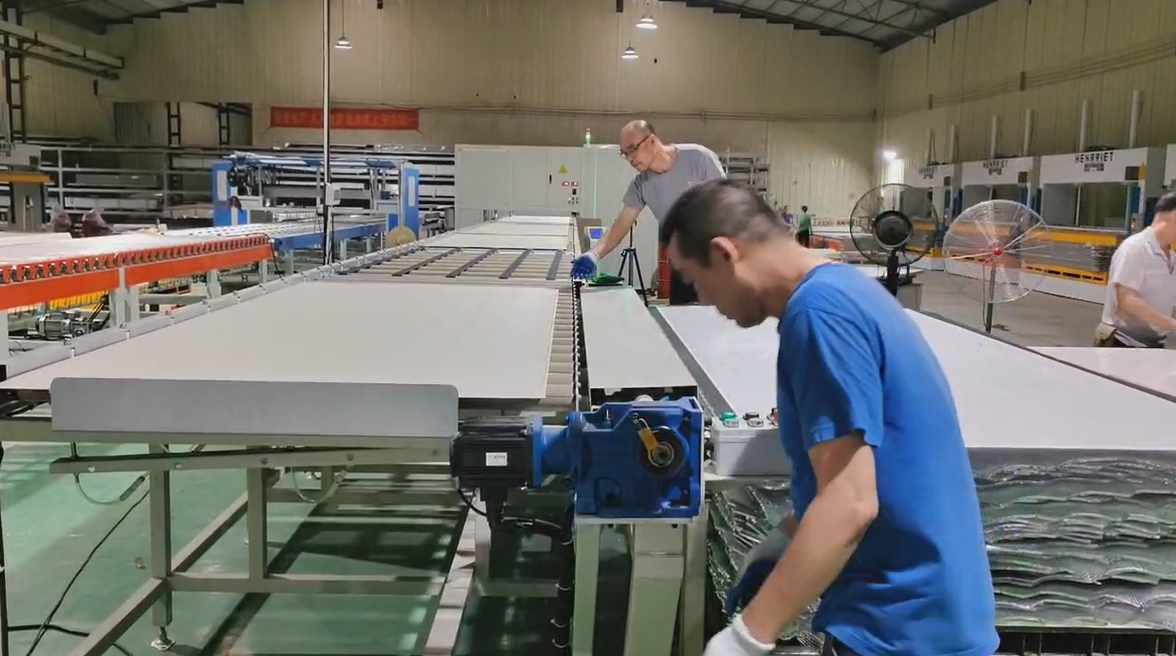

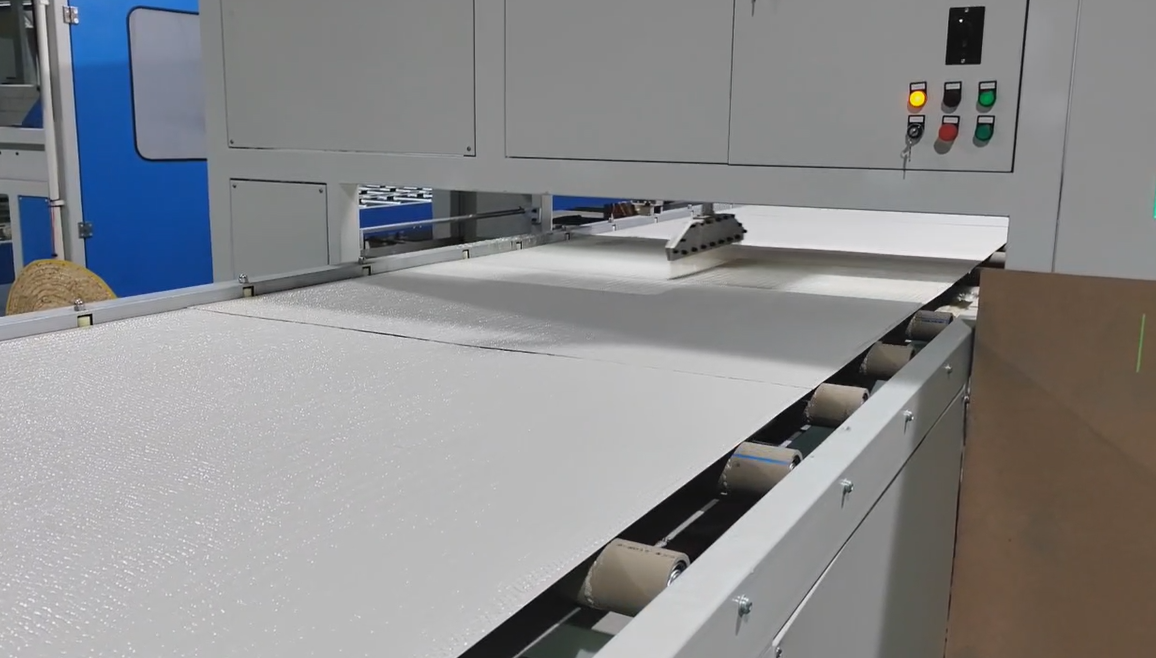

3 Layers Vacuum Hot Pressing Production Line

Name: 3 Layers Vacuum Hot Pressing Production Line
Brand: LONGYU
Price: 1 USD

Brand Name : LONGYU

Model Number : LY-04-1300

Certification : ISO9001

MOQ : 1Set

Price : Negotiable

Payment Terms : T/T

Supply Ability : 1Set/month

Delivery Time : 45-90 days

Packaging Details : Standard wooden case

Key Component : 4-layer negative pressure machine

Glue Application : CNC Glue Spraying, ±5% Accuracy

Adhesive Compatibility : Single or Two-component (≤25,000 mpa.s)

Production Speed : Up to 6 m/min

Function : Sintering and densification of materials under vacuum and high temperature

Powersupply : Three-phase AC 380V, 50/60Hz

Applicationfields : Ceramics, metals, composites, electronic materials

Air Supply : 0.6 - 0.8 MPa

Contact Now

4 Layers Vacuum Hot Pressing Production Line

Multilayer Vacuum Hot Pressing Production Line LY-15-3000 for RV & Refrigerated Truck Panels

This 73-meter long, 4-layer production line is designed for high-volume manufacturing of large-format panels for recreational vehicles and refrigerated transport applications.

Technical Specifications

Parameter Category	Item	Specification
Basic Specs	Model	LY-15-3000
Basic Specs	Equipment Length	73 m (Customizable)
Processing Capacity	Applicable Board Width	0.5 - 3 m (Customizable)
	Applicable Board Length	2 - 13 m
	Applicable Board Thickness	1 - 100 mm
	Max. Production Line Speed	6 m/min
Glue Spraying System	Work Coating Amount	500 - 4000 g/min
	Flow Accuracy	≤ ±5%
	Glue Nozzle Hole Pitch	8 mm
	Coating Width Range	1000 - 3000 mm (Optional)
	Glue per Unit Area	200 - 1000 g/m²
	Adhesive Viscosity	≤ 25,000 mpa.s
Vacuum Hot Press	Press Type	4-Layer Vacuum Hot Press
Utilities	Air Supply	0.6 - 0.8 MPa
	Power Supply	380V 50Hz 3-Phase (Optional)
	Maximum Power	200 KW

3 Layers Vacuum Hot Pressing Production Line

Key Features

Integrated Multilayer Production Line: Combines unwinding, glue spraying, 4-layer negative pressure machine, and cutting in one continuous line
4-Layer Vacuum Hot Press: High-efficiency multilayer pressing for maximum output with minimal footprint
Precision Glue Application: ±5% flow accuracy, 500-4000g/min coating amount, width up to 3000mm
Large Format Capability: Handles panels up to 3m wide, 13m long, and 100mm thick
High Output: Production line speed up to 6m/min, ideal for RV and refrigerated truck panel manufacturing

Applications

High-volume production of RV (Recreational Vehicle) cabin walls, floors, and roofs
Manufacturing of refrigerated truck and trailer body panels
Large-format sandwich panel production for other transportation and industrial applications
